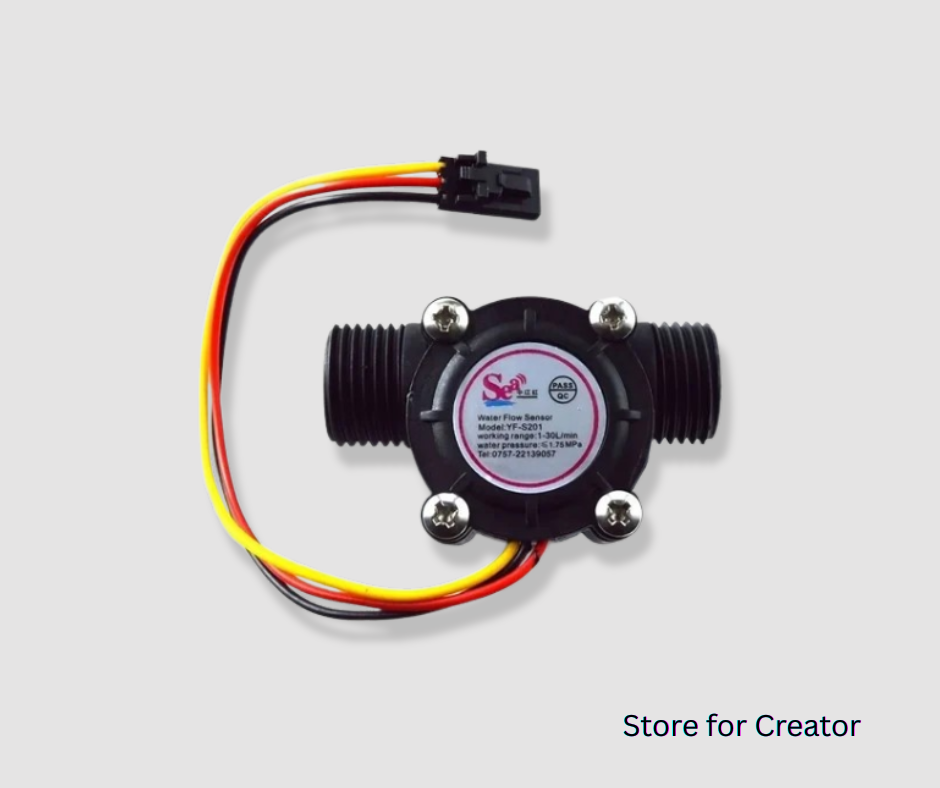

YFS201 Water Flow Sensor

YFS201 Water Flow Sensor

11,000.00 MMK
11,000.00 MMK
Sale Sold out
  • Operating Voltage: 4.5V to 18V DC
  • Output type: 5V TTL
  • Maximum current draw: 15mA at 5V
  • The sensor used: Hall Effect
  • Working Flow rate: 1 to 30 Liters/Minute
  • Accuracy: ±10%
  • Pulses per Liter: 450
  • Output duty cycle: 50% +-10%
  • Maximum water pressure: 2.0 MPa
  • Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
  • Cable length: 150mm
  • 1/2″ nominal pipe connections, 0.78″ outer diameter, 1/2″ of thread Size: 63.5 x 35.5 x 35.5mm
