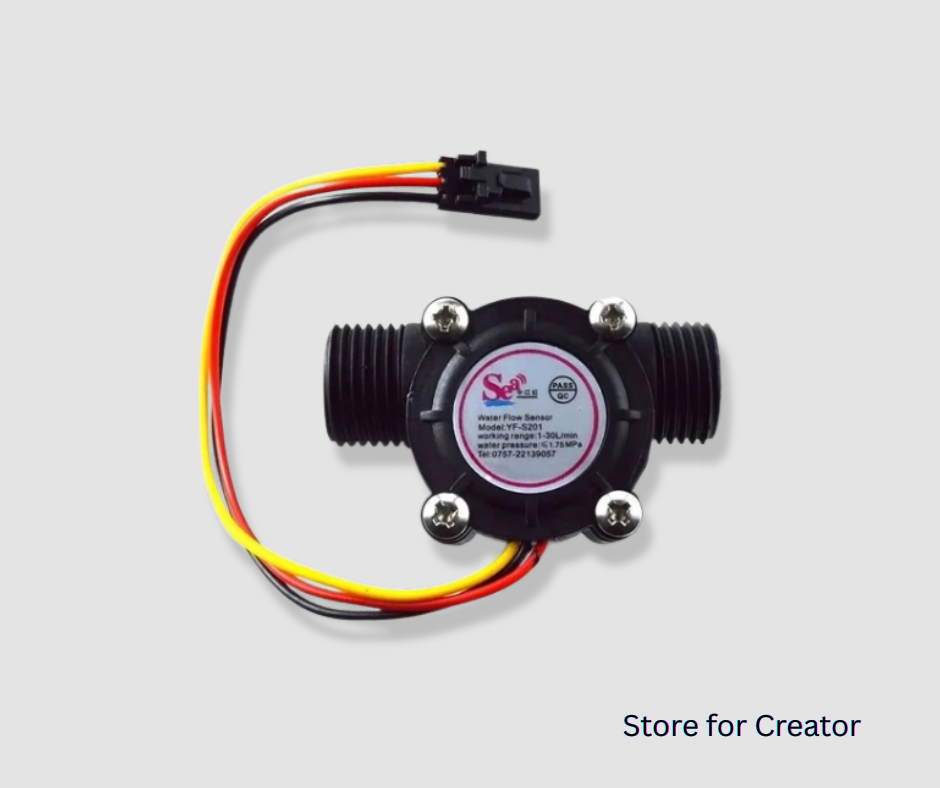

YF-S201 Hall Effect Water Flow Sensor
YF-S201 Hall Effect Water Flow Sensor
Regular price
15,000.00 MMK
Regular price
Sale price
15,000.00 MMK
Quantity
Couldn't load pickup availability
- Sensor Type: Hall effect
- Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
- Max current draw: 15mA @ 5V
- Output Type: 5V TTL
- Working Flow Rate: 1 to 30 Litres/Minute
- Working Temperature range: -25 to +80℃
- Working Humidity Range: 35%-80% RH
- Accuracy: ±10%
- Maximum water pressure: 2.0 MPa
- Output duty cycle: 50% +-10%
- Output rise time: 0.04us
- Output fall time: 0.18us
- Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
- Pulses per Litre: 450
- Durability: minimum 300,000 cycles
- Cable length: 150mm
- 1/2″ nominal pipe connections, 0.78″ outer diameter, 1/2″ of thread
- Size: 63.5 x 35.5 x 35.5mm
