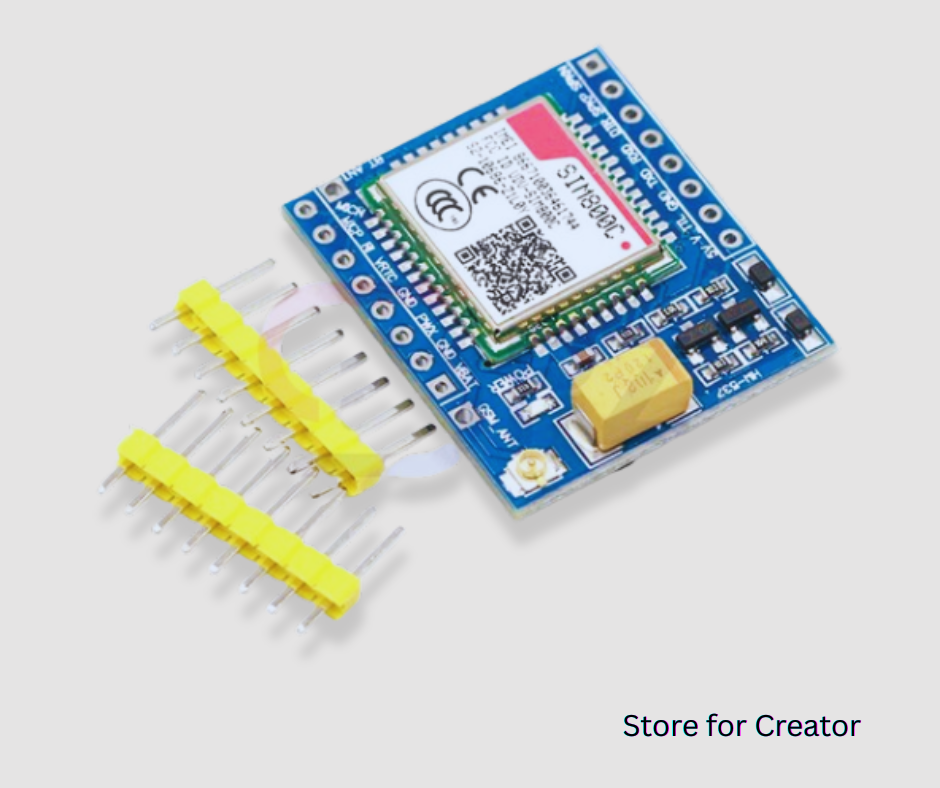

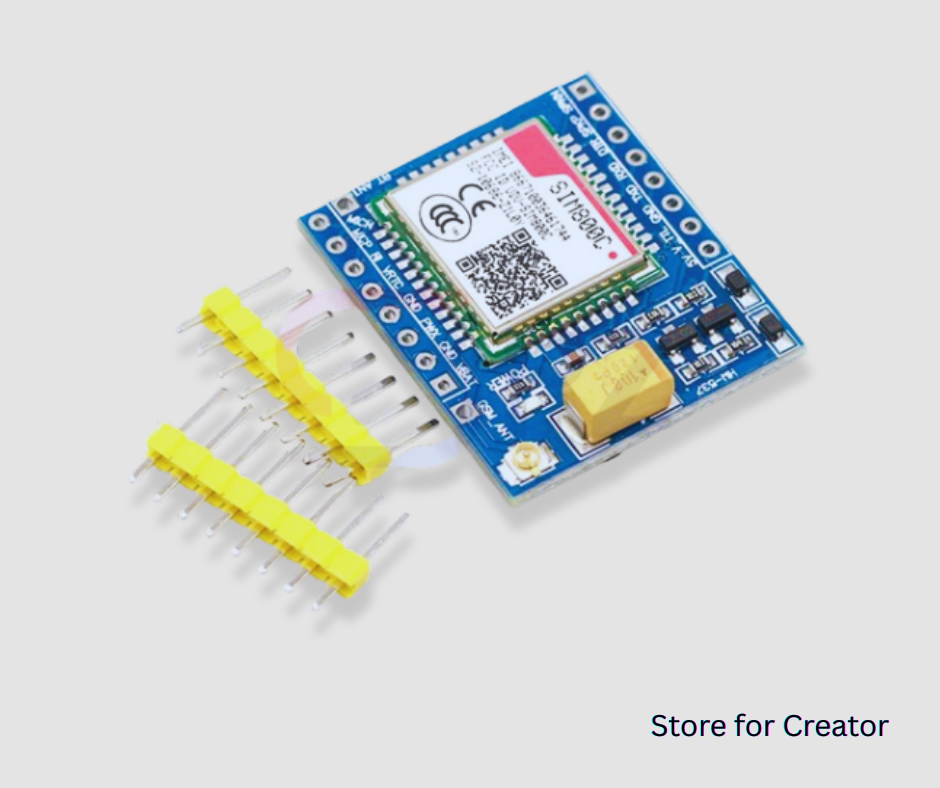

SIM800C GSM GPRS Module
SIM800C GSM GPRS Module
Regular price
28,500.00 MMK
Regular price
Sale price
28,500.00 MMK
Quantity
Couldn't load pickup availability
- Chip: SIM800C
- Band: 850/900/1800/1900MHz
- GPRS multi-slot class: 12/10
- GPRS mobile station class: B
- Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900 MHz) – Class 1 (1 W @ 1800/1900MHz)
- Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
- Power input: DC5V or received by a lithium battery input VBAT and GND.
- Supports MCU level: 5V / 3.3V for TTL logic (Such as the common 51 and the arduino is 5v, STM32 is the 3.3v)
- Antenna use: IPEX antenna interfaces, you can use the version PCB antenna or antenna IPEX-SMA- peppers
