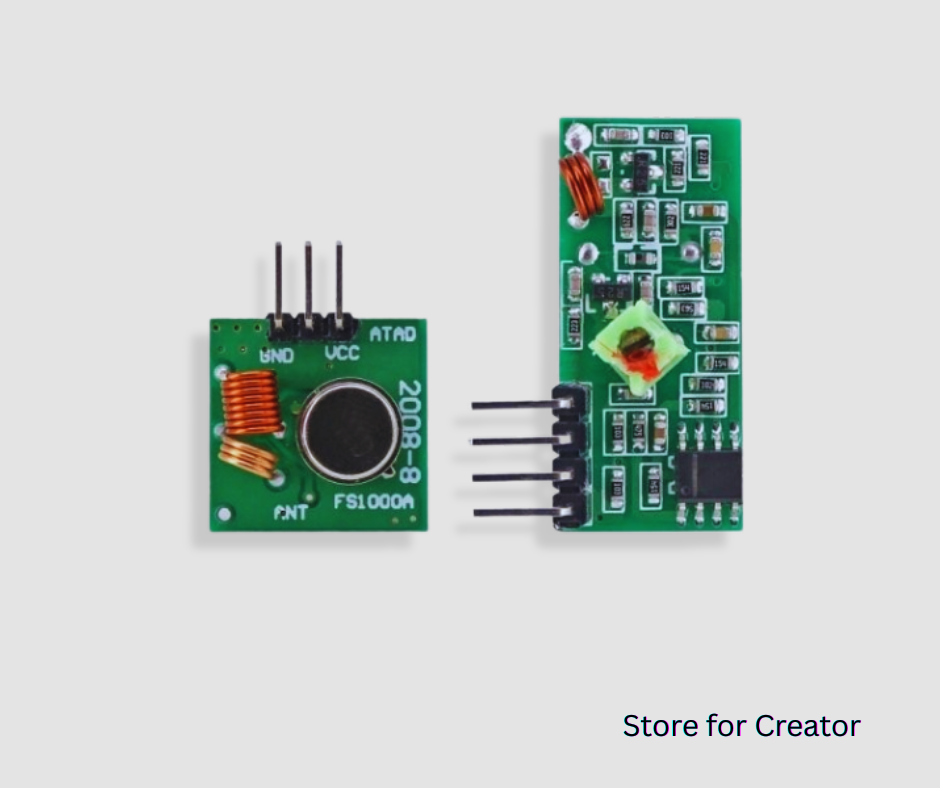

RF Receiver and Transmitter Module (433MHz)

RF Receiver Module (433MHz)

• Voltage: 5V (DC)
• Static current: 4mA
• Receiver Frequency: 433MHz
• Receiver sensitivity: -105dB
• External antenna: 32cm single-core wire, wound into a spiral
• Dimensions (L x W): 30 x 13mm



RF Transmitter Module (433MHz)

• Transmission distance: 50-100m
• Working voltage : 3.5-12V (DC)
• Modulation: AM
• Transfer rate: 4kB/s
• Transmit power: 10mW
• Emission frequency: 433MHz
• External antenna: 25cm ordinary multi-core or single core line
• Pinout from left to right: DATA; VCC; GND
• Dimensions (L x W): 19 x 19mm
