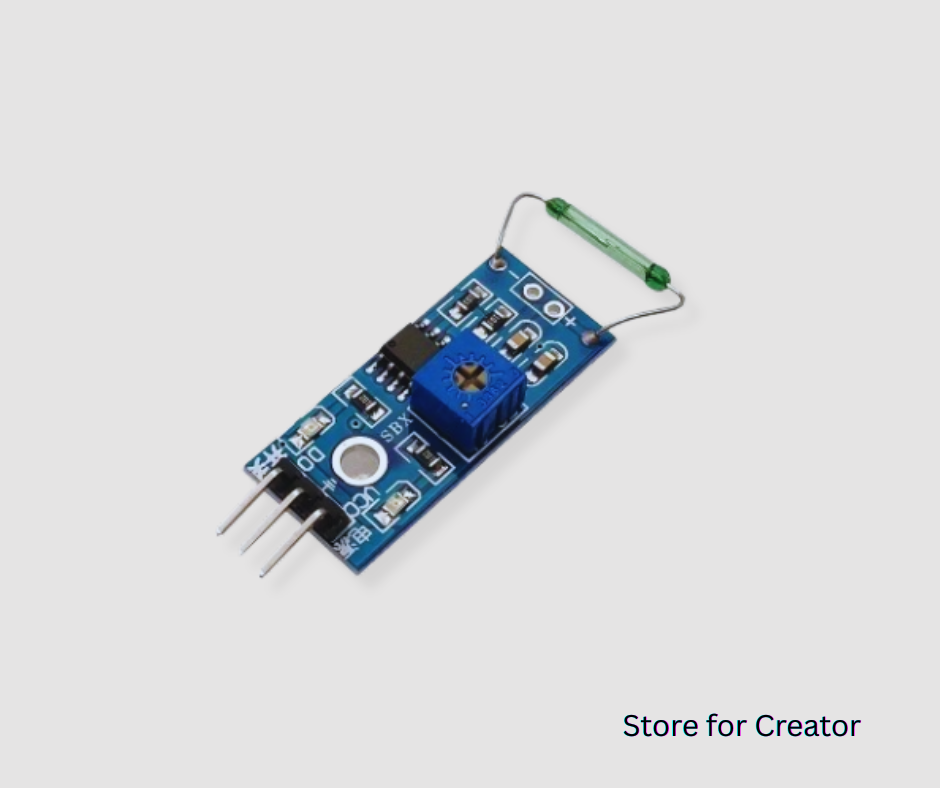

Reed Switch Magnet Sensor Module

Reed Switch Magnet Sensor Module

4,500.00 MMK
4,500.00 MMK
Sale Sold out

Specifications of Reed Switch Magnet Sensor Module - 3.3V To 12V

  • Product type: Reed switch magnet sensor module
  • Switch type: Normally-open reed switch
  • Output: Digital 0 and 1
  • Comparator: LM393
  • Working voltage: 3.3V to 12V
  • Output state in magnetic field: LOW
  • Sensor structure: Reed switch in a sealed glass envelope

How to Use Reed Switch Magnet Sensor Module - 3.3V To 12V

  1. Connect the module to a compatible board.
  2. Place a magnet near the sensor to trigger the output.
  3. Read the digital signal from the module.
