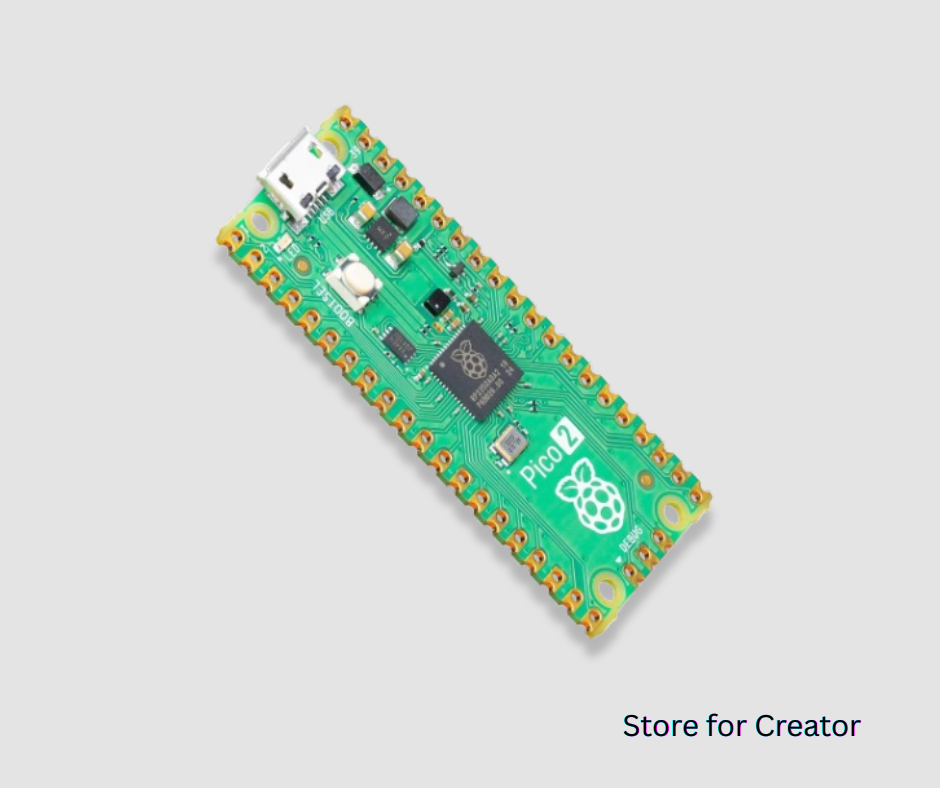

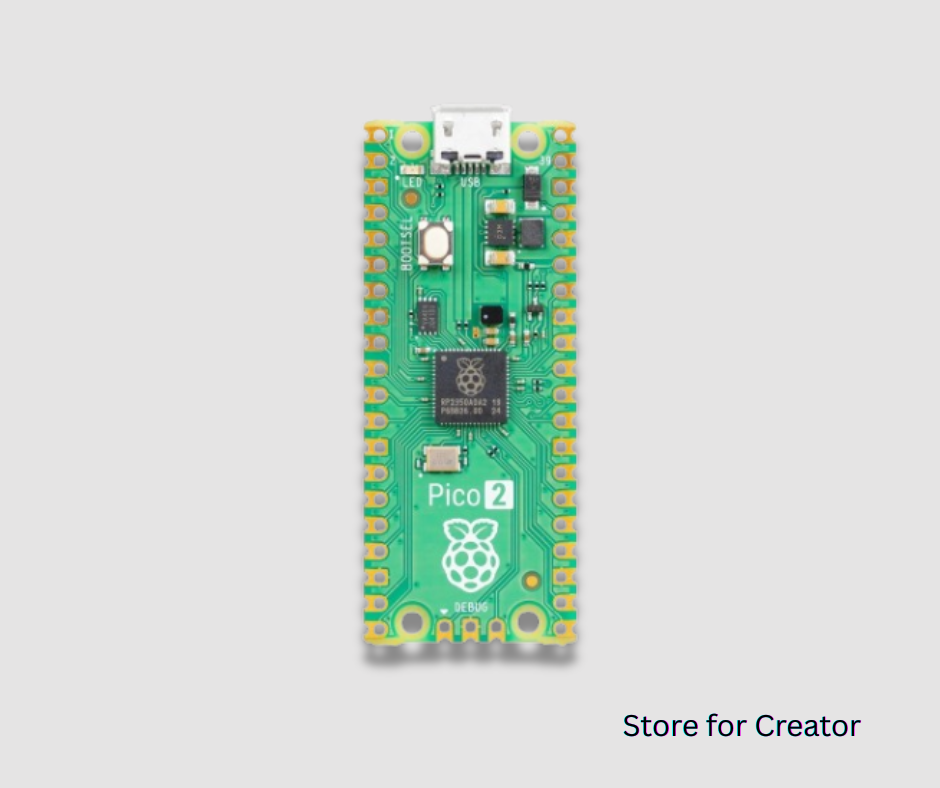

Raspberry Pi Pico 2

49,500.00 MMK

Sale Sold out

Form factor: 21 mm × 51 mm
CPU: Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors @ 150MHz
Memory: 520 KB on-chip SRAM; 4 MB on-board QSPI flash
Interfacing: 26 multi-purpose GPIO pins, including 4 that can be used for ADC
Peripherals: • 2 × UART
2 × SPI controllers
2 × I2C controllers
24 × PWM channels
1 × USB 1.1 controller and PHY, with host and device support
12 × PIO state machines
Input power: 1.8–5.5V DC
Operating temperature: -20°C to +85°C
Production lifetime: Raspberry Pi Pico 2 will remain in production until at least January 2040
Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
