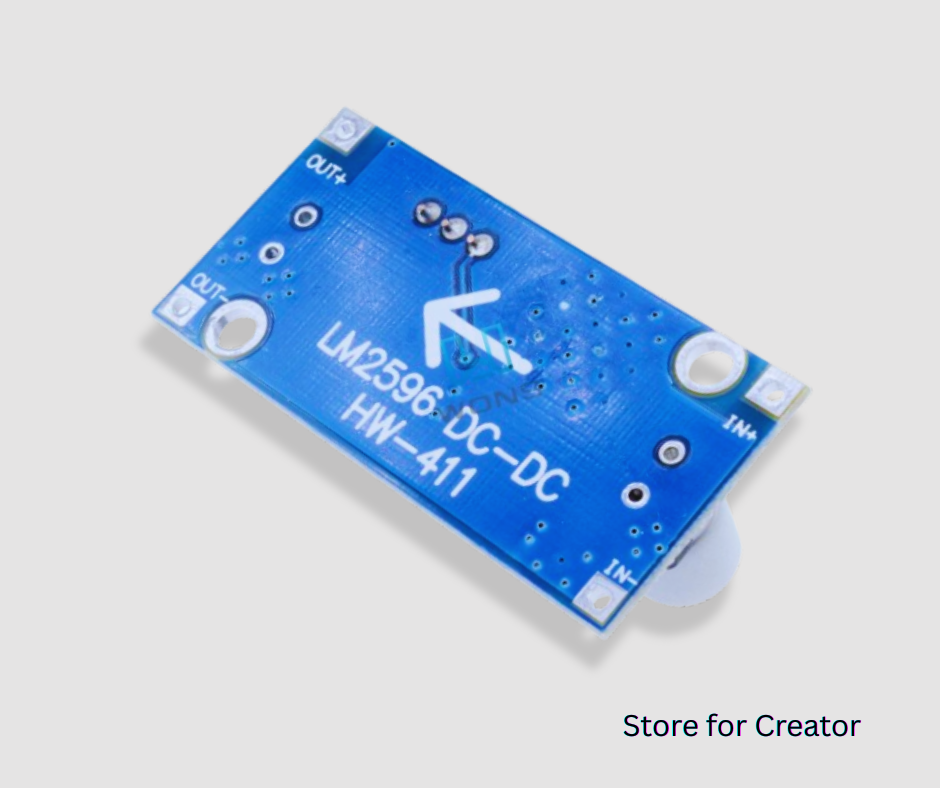

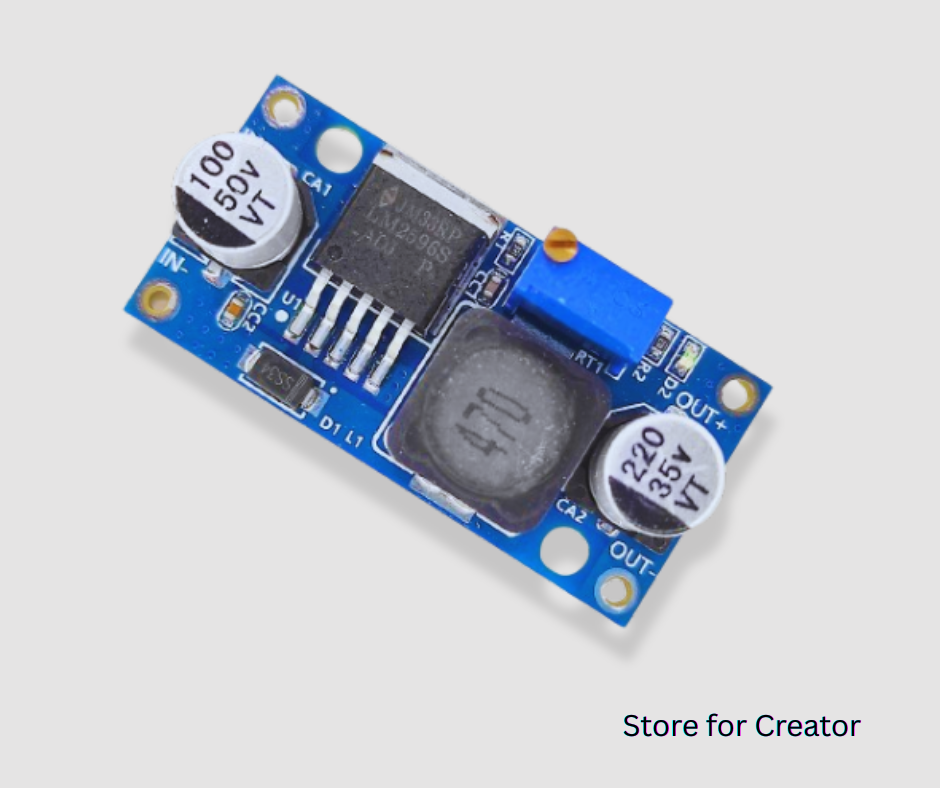

LM2596S DC-DC Step-down Adjustable Power Supply Module
LM2596S DC-DC Step-down Adjustable Power Supply Module
Regular price
5,000.00 MMK
Regular price
Sale price
5,000.00 MMK
Quantity
Couldn't load pickup availability
- Model:LM2596S
- Input voltage: 4-32V
- Output Voltage: 1.5-30V (adjustable)
- Output current: rated current 2A, maximum 3A (heat sink required)
- Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting
- Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
- Full load temperature rise: 40 ℃
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Output ripple:
- Input 12V Output 5V 3A 60mV (MAX)
- Input 24V Output 12V 3A 120mV (MAX)
- Input way: IN+, IN-
- Output way: OUT+, OUT-
