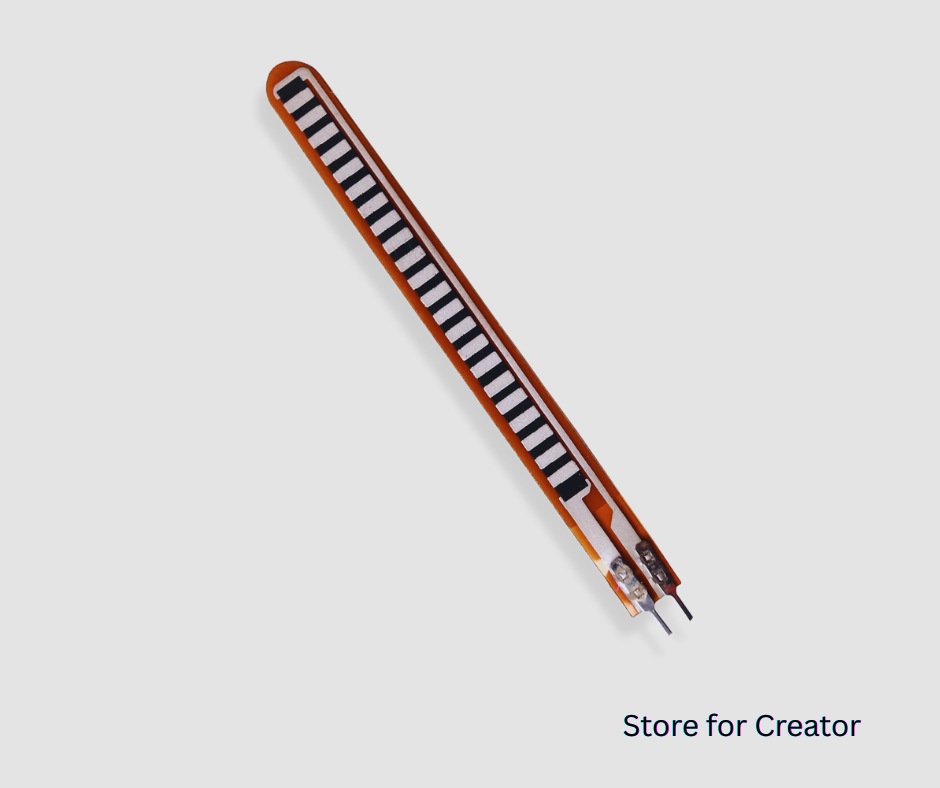

Flex Sensor 2.2 inch (Original)

Flex Sensor 2.2" Specifications

Parameter Value

• Length 2.2 inches (56 mm)
• Width 0.25 inch (6.35 mm)
• Thickness ~0.43 mm
• Flat Resistance ~10 kΩ (±30%)
• Resistance @ 45° Bend ~14 kΩ – 15 kΩ
• Resistance @ 90° Bend ~20 kΩ – 25 kΩ
• Resistance @ 180° Bend ~30 kΩ – 40 kΩ
• Bend Angle Range 0° to 180°
• Bend Life >1 million cycles
• Response Time < 50 ms
• Power Rating 0.5 Watts continuous at 25°C
• Operating Voltage Typically 3.3V to 5V (used with divider)
• Operating Temperature -35°C to +80°C
• Storage Temperature -40°C to +85°C
• Output Type Analog Resistance Change
