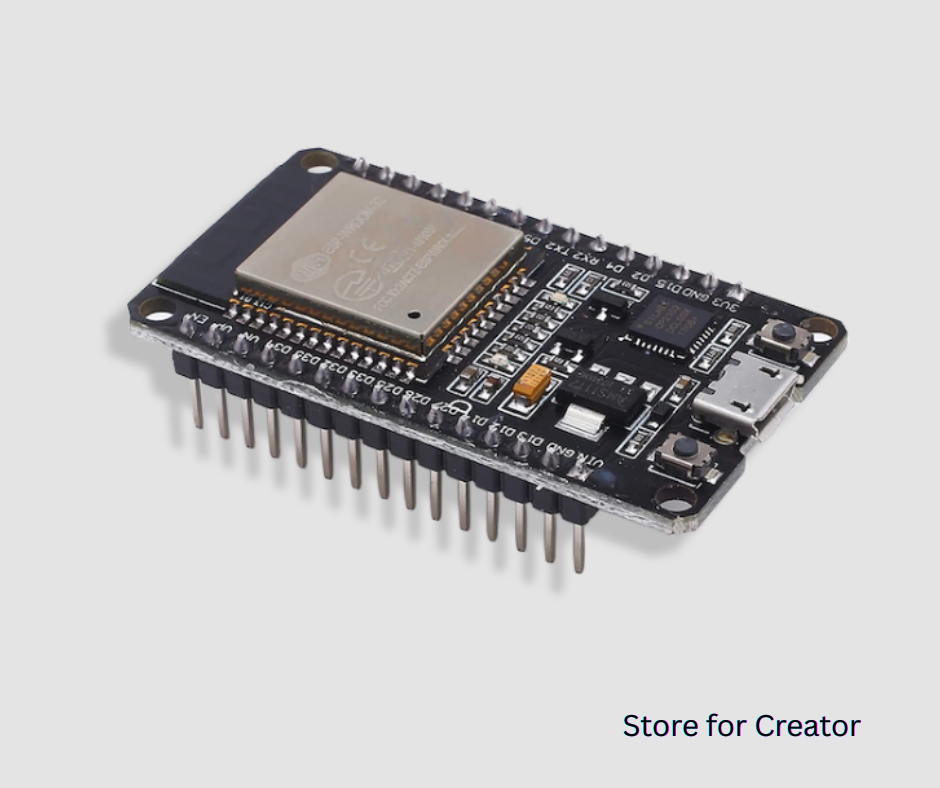

ESP32 Development Board

30,500.00 MMK

Sale Sold out

Built in Wi-Fi module of standard 802.11
Wi-Fi module operate in range of 2.4 GHz – 2.5 GHz
Three modes of operation: 1. Access point. 2. Client. 3. Access point + station
Dual core microprocessor of 32 – bit
Operating voltage is 3.3 V
Clock frequency from 80 MHz and goes up to 240 MHz
SRAM memory is of 512 KB
ROM memory is 448 KB
External flash memory is supported and is up to 32 Mb i.e. 4MB
Maximum current in each pin is 12 mA but 6 mA is recommended to use
It has 36 general purpose input / output pins
General purpose input / output pins comes up with PWM / I2C and SPI functionality
Bluetooth version 4.2 is available and Bluetooth low energy (BLE) version
2 to 3.6 V operating voltage
Deep sleep current of 2.5 µA
10 electrode capacitive touch support
Hardware supported encryption for AES, ECC, RSA – 4096, SHA2
On board PCB antenna or IPEX connector which act as external antenna
Operating temperature lies in range of -40°C to +125°C
