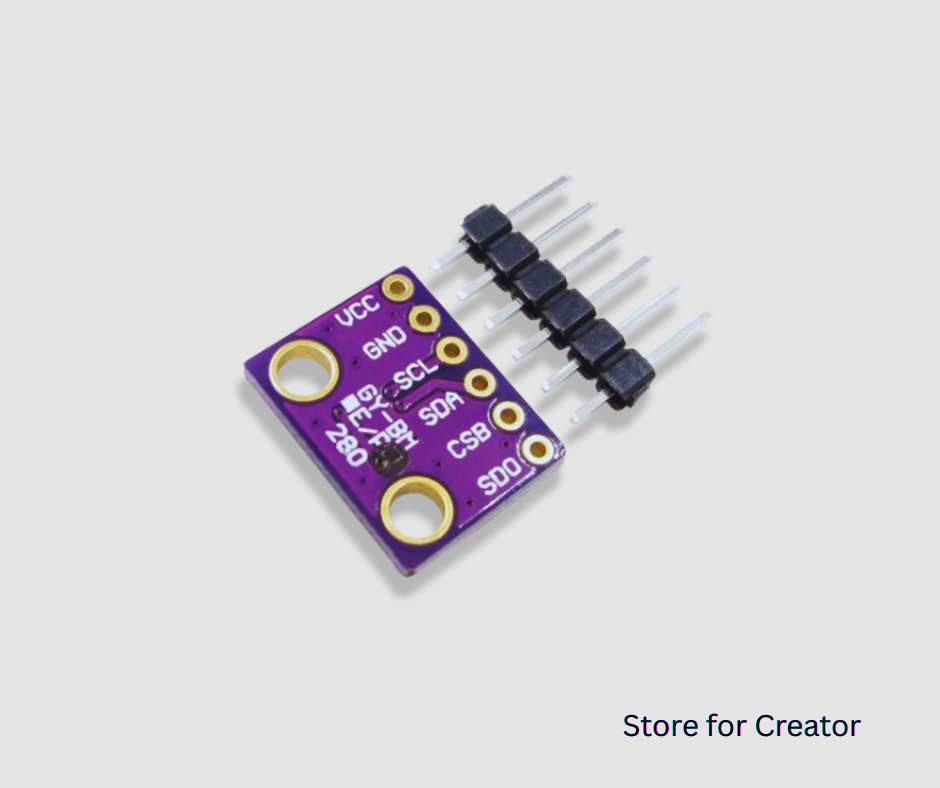

BMP280 Barometric Pressure Sensor

BMP280 Barometric Pressure Sensor

6,300.00 MMK
6,300.00 MMK
Sale Sold out

Specifications of CJMCU BMP280 Barometric Pressure Sensor

  • Pressure range: 300 - 1100 hPa
  • Working voltage: 3-5 volts
  • Accuracy: ±0.12 hPa
  • Absolute accuracy: typ. ±1 hPa
  • Temperature offset coefficient: 1.5 Pa/K
  • Digital interface: I2C - up to 3.4 MHz
  • Digital interface: SPI (three and four wires - up to 10 MHz)
  • Current consumption: 2.7 μA at 1 Hz sampling frequency
  • Dimensions: 15x12x3 mm
  • Humidity sensor: No

How to Use CJMCU BMP280 Barometric Pressure Sensor

  1. Connect the module to a compatible system using the I2C or SPI interface.
  2. Supply power within the 3-5 volts operating range.
  3. Read pressure data within the specified pressure range.
