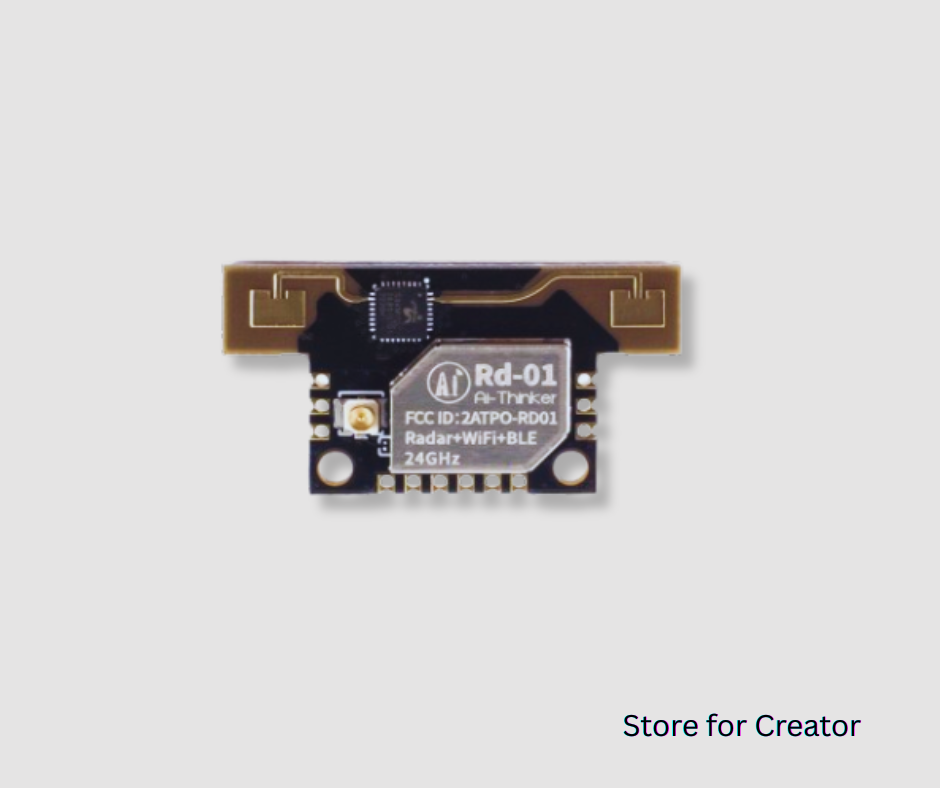

Ai-Thinker Rd-01 Human Presence Sensor With WiFi & Bluetooth

30,000.00 MMK

Sale Sold out

Encapsulation: SMD-12, compatible with patch/pin header/socket and other assembly methods
Size: 35x18x3.6 (mm)
Antenna form:
- Radar: Onboard antenna
- Wi-Fi&BLE: IPEX holder
Spectrum range:
- Radar:24G~24.25GHz
- Wi-Fi: 2400~2483.5MHz
Operating temperature: -40°C~85°C
Power supply range: Power supply voltage 3.0V~3.6V, power supply current ≥500mA
Support interface: UART, GPIO, ADC, PWM, I2C, SPI
Serial port speed: Default 256000bps
Safety: WPS, WEP, WPA, WPA2 Personal, WPA2 Enterprise, WPA3
Default 2MByte
