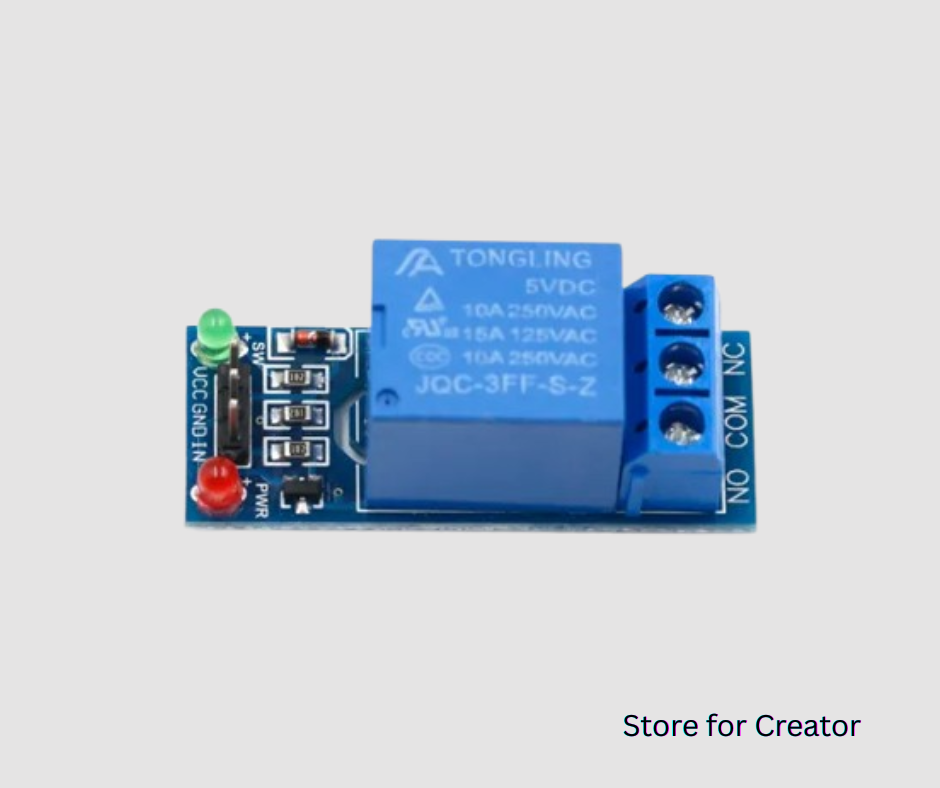

1 Channel Relay Module (5V,10A, HIGH ACTIVE)
1 Channel Relay Module (5V,10A, HIGH ACTIVE)
Regular price
3,800.00 MMK
Regular price
Sale price
3,800.00 MMK
Quantity
Couldn't load pickup availability
- 1-channel 5V control Single-Pole Double-Throw (SPDT) AC power relay board can be controlled directly via a microcontroller and switch up to 10 amperes at 250 VAC
- Inputs are isolated to protect any delicate control circuitry
- The default state of the relay when the power is off for COMM (power) to be connected to NC (Normally Closed). This is the equivalent of setting the relay board IN pin to HIGH (has +5v sent to it)
- Relay Max Switching Voltage: 250 Volts AC; Relay Max Switching: Current: 10 Amps AC; Relay Control Voltage: 5.0V directly via microcontroller (Arduino, AVR, PIC, ARM, Board X, Raspberry Pi, MSP430, etc)
